Stepper Motor as Pump Drive



A stepper motor is an electric motor that rotates in precise steps rather than performing a continuous motion. Its operation is based on the electromagnetic interaction between a fixed stator and a rotating rotor. A stepper motor is relatively easy to control and adjust its speed. This makes it particularly suitable for driving a feed syrup pump. The high viscosity of the feed syrup requires high torque at low speed. A speed-controlled controller can also achieve smooth pump start-up.

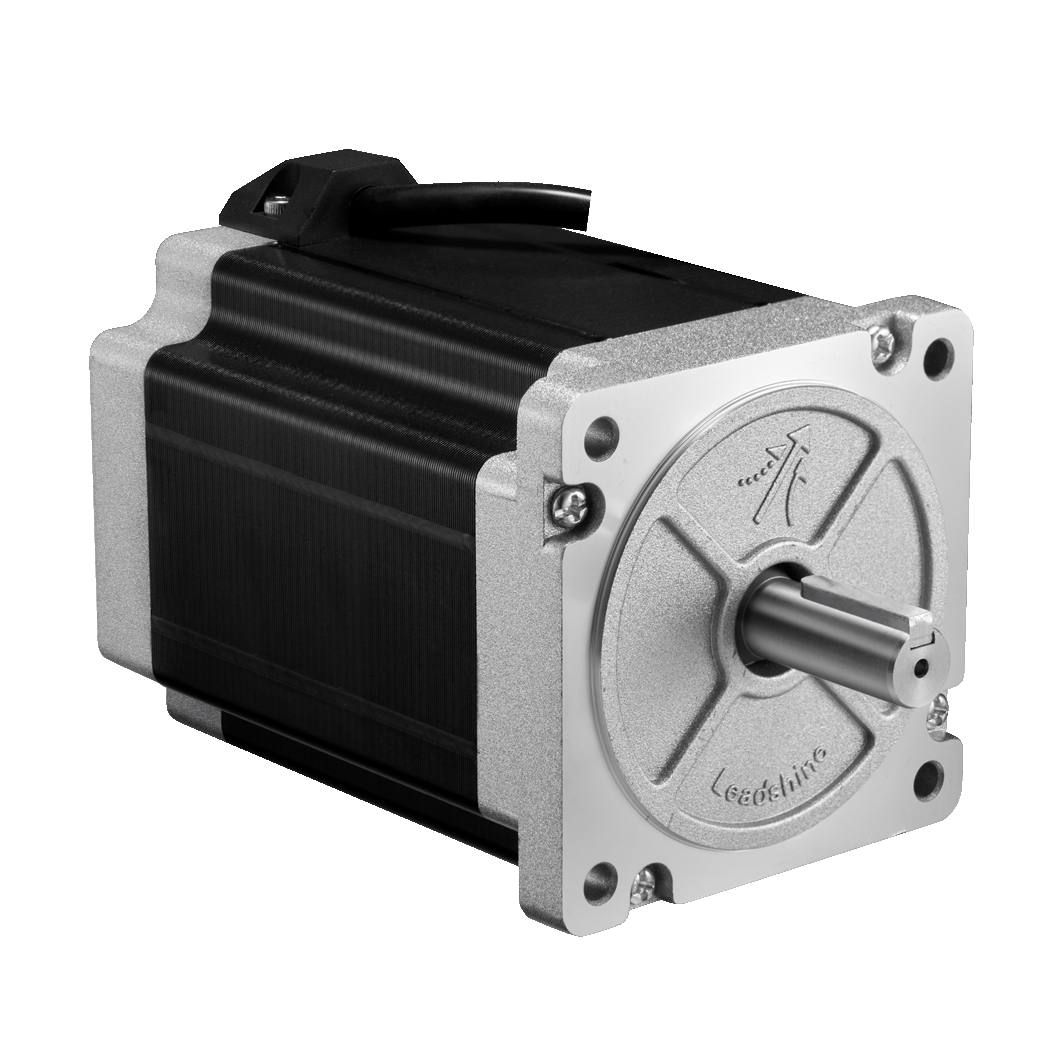

Schrittmotor 86CM120 als Pumpantrieb







Advantages of using a stepper motor:

  1. Precise control:

    • Stepper motors can be positioned with high accuracy. This is particularly advantageous when the rotary pump is used for applications that require precise flow rates or specific duty cycles.

  2. Adjustable speed:

    • The speed of a stepper motor can be easily adjusted via the controller, allowing the pump to adapt to different flow requirements.

  3. Easy integration into control systems:

    • Stepper motors can be easily integrated into an automated system, making them ideal for applications requiring programmable control.

  4. No gearbox required (with suitable torque):

    • If the stepper motor provides sufficient torque, it can be coupled directly to the pump, eliminating the need for additional mechanical components.

Challenges of using a stepper motor:

  1. Torque drop at higher speeds:

    • Stepper motors lose torque as speeds increase. This could be problematic for applications requiring high flow rates. In such cases, a DC motor or servo motor might be more suitable.

  2. Power Consumption and Heat Generation:

    • Stepper motors consume power even when not in use, which can lead to increased heat generation. This can be inefficient if the pump is frequently idle.

  3. Vibration and Resonance:

    • Stepper motors can be prone to resonance at certain speeds, which can lead to rough operation and increased wear.

  4. Limited Power:

    • Stepper motors have limited power. If the pump requires high power or torque, a servo motor or a conventional AC/DC motor might be a better choice.

Suitability for Various Rotary Pumps:

  • Peristaltic Pumps:

    • Stepper motors are ideal for peristaltic pumps because the precise control of the rotary motion allows for precise metering.

  • Impeller or Centrifugal Pumps:

    • A stepper motor might be suitable for these pump types if the flow rate and pressure are within the range of the motor's power. However, limitations may apply at high speeds or pressures.

  • Gear pumps:

    • Gear pumps can also be driven effectively with stepper motors, especially in applications that require precise flow control.


Recommendations for use:

  1. Sizing:

    • The stepper motor should be sized to provide the required power, torque, and speed of the pump.

  2. Driver and controller:

    • Use a high-quality motor driver that supports microstepping to ensure smoother operation and reduced vibration.

  3. Consider cooling:

    • Ensure adequate cooling of the motor, especially for continuous operation or applications with high loads.

  4. Feedback system (optional):

    • For greater reliability, you can add an encoder to obtain position feedback, enabling a closed-loop control system.
