PWM frequency generator for controlling a stepper motor driver



A PWM frequency generator for controlling a stepper motor driver generates precise pulse-width modulation (PWM) signals or square-wave signals with adjustable frequency and pulse duration. These signals serve as the clock for the stepper motor driver and determine the motor's speed and direction.

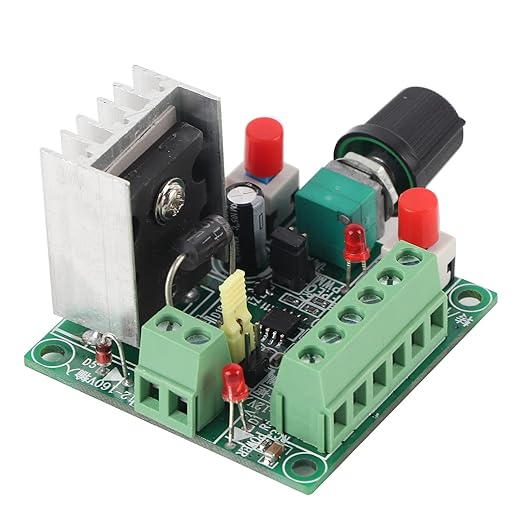

PWM Frequenzgenerator / Signalgenerator zur Steuerung eines Schrittmotors







Structure and function of a PWM frequency generator:

  1. Signal source:

    • The frequency generator generates a series of pulses (square-wave signals) whose frequency and pulse width can be adjusted. These pulses control the stepping sequence of the stepper motor.

  2. Frequency control:

    • The frequency of the signals determines the speed at which the motor rotates step by step. Higher frequencies result in faster movements, while lower frequencies reduce the rotational speed.

  3. PWM signal for stepper motors:

    • In some drivers, the PWM signal is used directly to precisely control microsteps or the power supply to the motor phases. In this case, the pulse width (duty cycle) influences the motor's performance and smoothness.

  4. Direction control:

    • In addition to frequency control, the frequency generator often provides an additional signal (e.g., HIGH/LOW) that determines the motor's direction of rotation.


Combination with a stepper motor driver:

The frequency generator is only one component in the control system of a stepper motor. In combination with a driver, the system works as follows:

  1. Clock signal (Pulse):

    • The frequency generator sends the pulses to the "STEP" input of the stepper motor driver.
    • Each pulse moves the motor one step (or microstep, depending on the configuration).

  2. Direction signal (Direction):

    • An additional signal (e.g., from the frequency generator or a separate controller) is sent to the "DIR" input of the driver to determine the direction of rotation of the motor.

  3. Driver handles current control:

    • The driver controls the power supply to the motor windings based on the PWM pulses, ensuring precise rotor movement.


Application areas and advantages:

  1. Simple control:

    • A PWM frequency generator enables the control of a stepper motor without complex microcontroller programming. The speed is controlled by adjusting the frequency of the PWM signal.

  2. Cost-effective and flexible:

    • A simple frequency generator can be adjusted manually or automatically, making it useful in many applications such as prototyping, robotics, or DIY projects.

  3. Areas of application:

    • CNC machines, 3D printers, or other precise motion control systems that require speed and direction control.
